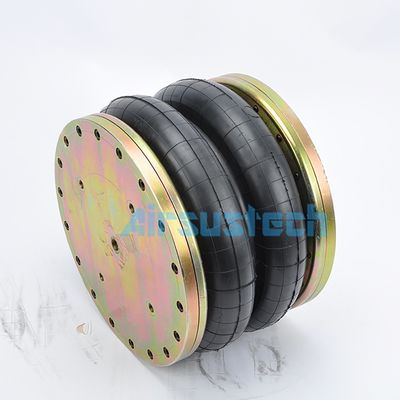

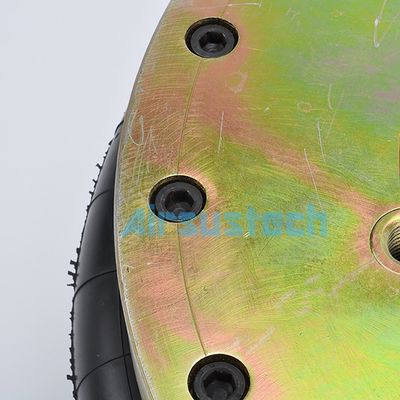

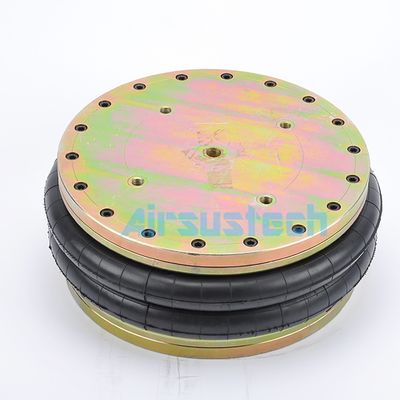

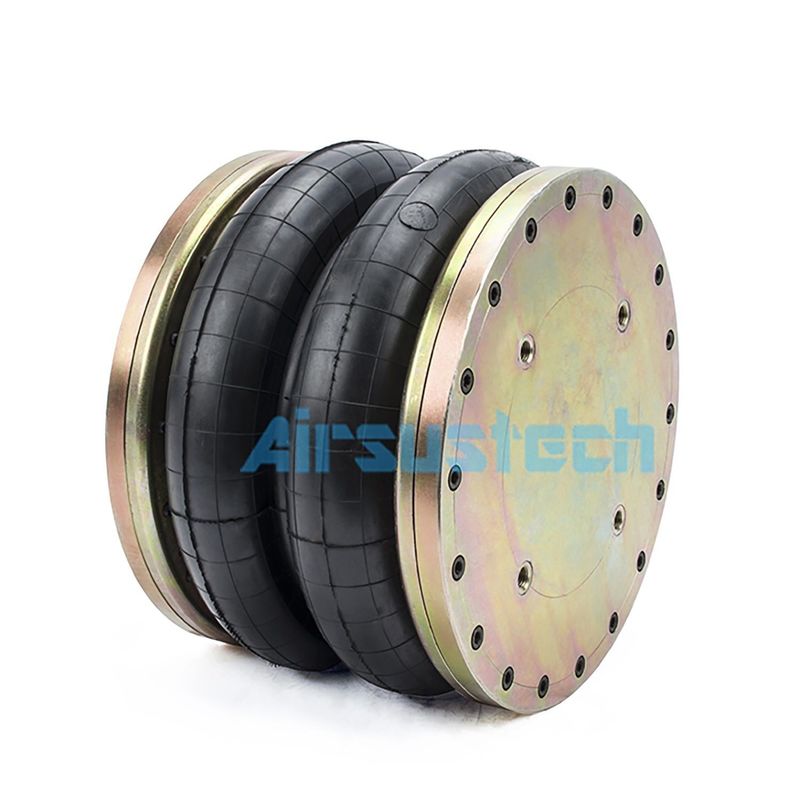

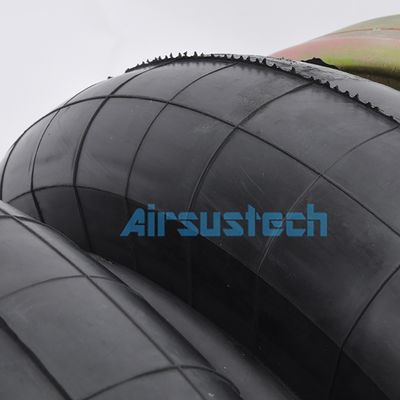

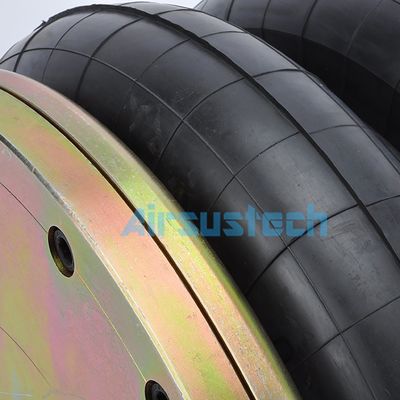

LHF320/240-2 Flange Spring Shocks 2 Convolutions Industrial Air Bag For Roller Friction Brake

تفاصيل المنتج:

مكان المنشأ:	قوانغدونغ ، الصين
اسم العلامة التجارية:	GUOMAT
إصدار الشهادات:	ISO/TS16949:2009
رقم الموديل:	LHF320/240-2

شروط الدفع والشحن:

الحد الأدنى لكمية:	6pcs
الأسعار:	$89.9-99.9/pc
تفاصيل التغليف:	صندوق كرتون قوي أو كما يحتاج العملاء
وقت التسليم:	2-8 أيام العمل
شروط الدفع:	T/T ، Western Union ، L/C
القدرة على العرض:	1000pcs/أسبوع

مفصلة وصف المنتج

نموذج لا.:	LHF320/240-2	مواد الربيع:	ممحاة
الجودة:	100 ٪ اختبار	الوجبات:	تقليل الصدمة
رمز HS:	8708809000	ضمان:	12 شهرا
يكتب:	مليء بالغاز	نوع الربيع:	ربيع الهواء

LHF320/240-2 Flange Spring Shocks 2 Convolutions Industrial Air Bag For Roller Friction Brake

Specifications and Detailed Technical Parameters: LHF320240-2

Model Size	The number of convolutions	Design diameter D₀(mm)	Maximum outer diameter D(mm)	Flange diameter D2(mm)	Design height H(mm)
LHF320240-2	2	327	417	384	240

Brand: GUOMAT

Material: Rubber and Steel

Type: Air spring + Cover

Double Convoluted Air Spring

Air Suspension Kit

Our Services
1. OEM orders are welcome: product, packaging, etc.
2. We accept sample orders. If you place a large order after receiving the sample, we will refund the sample fee as a discount.
3. We will respond to your inquiries within 24 hours.
4. After shipment, we will track your product every two days until you receive it. Upon receipt, please test it and provide us with feedback. If you have any questions, please contact us and we will provide you with a solution.

Other Types of Air Spring/Air Bag/Air Suspension/ Air Ballons/Cylinder We have

GUOMAT AIR SPRING MODEL TYPE
LHF Type Air Spring	The number of convolutions	Design diameter D0(mm)	Max. outer diameter D(mm)	Front outer diamater φ(mm)	Design height H(mm)	Full stroke L(mm)	Effective Area Ae(cm2)	0.4-0.7mpa bearing capacity (kg)
LHF100/166-2	2	100	160	112	176	74-200	78.5	314-550
LHF100/238-3	3	100	160	112	256	98-275	78.5	314-550
LHF150/212-2	2	150	230	158	222	90-250	176.7	707-1237
LHF150/304-3	3	150	230	158	322	120-350	176.7	707-1237
LHF200/212-2	2	200	280	208	224	90-250	314.2	1257-2199
LHF200/304-3	3	200	280	208	326	120-350	314.2	1257-2199
LHF230/120-1	1	230	320	182	124	60-150	415.5	1662-2908
LHF230/218-2	2	230	310	238	224	90-260	415.5	1662-2908
LHF230/316-3	3	230	310	238	326	120-360	415.5	1662-2908
LHF250/255-2	2	250	350	260	255	100-305	490.9	1964-3436
LHF250/218-2	2	250	330	258	224	90-260	490.9	1964-3436
LHF250/316-3	3	250	330	258	326	120-360	490.9	1964-3436
LHF256/92-1	1	256	310	210	92	50-145	514.7	2059-3603
LHF256/166-2	2	256	310	210	166	74-240	514.7	2059-3603
LHF280/218-2	2	280	360	288	224	90-260	615.8	2463-4310
LHF280/316-3	3	280	360	288	326	120-360	615.8	2463-4310
LHF300/218-2	2	300	380	308	226	90-270	706.9	2828-4948
LHF300/316-3	3	300	380	308	330	120-370	706.9	2828-4948
LHF320/186-2	2	320	380	260	186	80-280	804.2	3217-5629
LHF320/350-3	3	327	417	340	240	102-280	839.8	3359-5879
LHF340/226-2	2	340	420	340	226	90-270	908.0	3632-6356
LHF400/218-2	2	400	480	408	228	90-275	1256.6	5026-8796
LHF400/316-3	3	400	480	408	334	120-375	1256.6	5026-8796
LHF440/218-2	2	440	520	448	218	90-248	1520.5	6082-1064
LHF440/316-3	3	440	520	448	316	120-365	1520.5	6082-1064
LHF500/220-2	2	500	580	508	220	92-252	1963.5	7854-13744
LHF500/320-3	3	500	580	508	320	120-370	1963.5	7854-13744
LHF580/262-2	2	580	680	588	262	92-308	2642.1	10568-18495
LHF580/384-3	3	580	680	588	384	125-450	2642.1	10568-18495
