| Place of Origin: | GuangDong, China |
| اسم العلامة التجارية: | GUOMAT |
| إصدار الشهادات: | ISO/TS16949:2009 |
| Model Number: | 1B9X5 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| الأسعار: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |

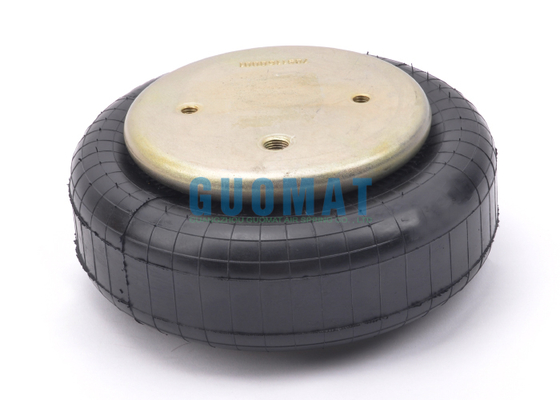

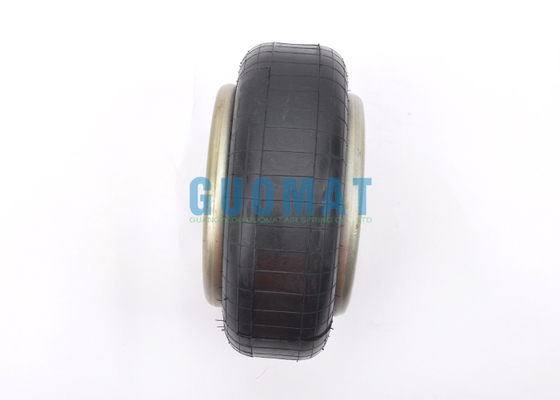

| Product Name: | Industrial Air Spring | Warranty: | 1 Year |
|---|---|---|---|
| Material: | Rubber + Steel | Packing: | Brown Carton |
| Color: | Black | Goodyear: | 1B9-202 |
| Convolutions: | 1 | Application: | Large Drying Machines |
| إبراز: | Goodyear inflatable air spring,1B9X5 replacement airbag,industrial air spring with warranty,1B9X5 replacement airbag,industrial air spring with warranty |
||
| Attribute | Value |
|---|---|
| Product Name | Industrial Air Spring |
| Warranty | 1 Year |
| Material | Rubber + Steel |
| Packing | Brown Carton |
| Color | Black |
| Goodyear | 1B9-202 |
| Convolutions | 1 |
| Application | Large Drying Machines |
| Product Name | Industrial Air Spring |
| Warranty | 1 Year |
| Place of Origin | GuangDong China |
| Brand Name | GUOMAT |
| Certification | ISO/TS16949:2009 |
| Model No. | 1B9x5 |
| Condition | New |
| Other Name | Convoluted Rubber Air Spring |
Goodyear Part Number: 1B9-202
Goodyear Part Number: 1B 9-202
Goodyear Part Number: 1B9 202
Goodyear Part Number: 1B9202
Goodyear Bellows Number: 578913201
Goodyear Bellows Number: 578 91 3 201
Goodyear Bellows Number: 578-91-3-201
Enidine Part Number: YI1B9-202
Enidine Part Number: YI 1B9-202
Air Port Thread Diameter: 1/4 in
Air Port Thread Standard: UNC
Air Port Thread Type: 1/4 UNC
Bumper Type: None
Diameter at 100 psi: 11 in
End Plate Diameter: 6.4in
Force At Max Stroke At 100 Psi: 2850 lbs
Height Range: 4-1/2 to 5 in
Load Range at 100 psi: 3200 to 3900 lbs
Spring Style: Single Convolute
Stroke: 2.90 in
System Natural Frequency: 2.50 Hz
Tap Spacing: 3-1/2 in
| Goodyear Number | Top Plate Hole/Stud Qty | Bottom Plate Hole/Stud Qty | Top Plate Dia. | Bottom Plate Dia. | Collapsed Height | Flexmember | Piston | Piston Type |
|---|---|---|---|---|---|---|---|---|
| 1B12-301 | 3 | 2 | 9 | 9 | 2.6 | 578-91-3-301 | - | - |
| 1B12-305 | 3 | 2 | 9 | 9 | 2.6 | 578-91-3-301 | - | - |
| 1B14-358 | 5 | 4 | 11.3 | 11.3 | 2.3 | 578-91-3-352 | - | - |
| 1B14-350 | 5 | 4 | 11.3 | 11.3 | 2.5 | 578-91-3-351 | - | - |
| 1B14-351 | 5 | 4 | 11.3 | 11.3 | 4.18 | 578-91-3-351 | - | - |
