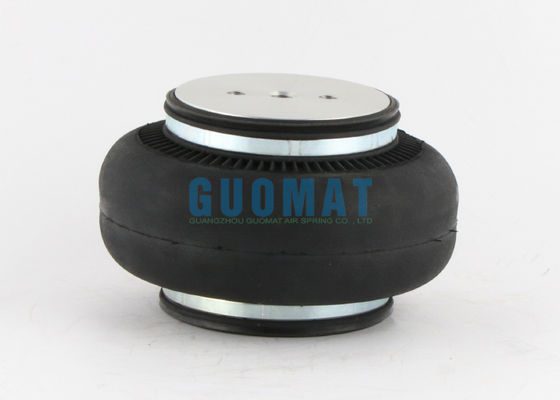

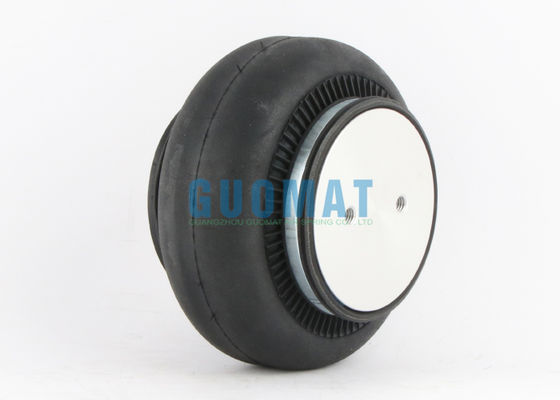

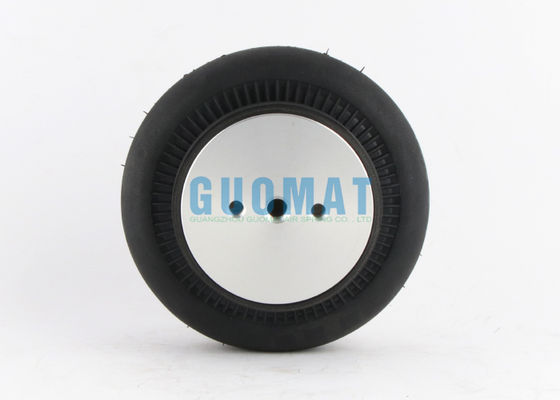

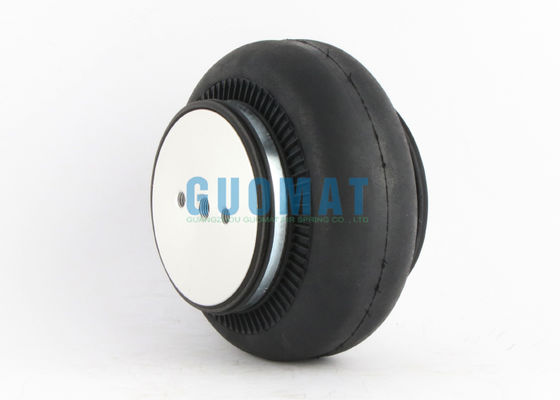

GUOMAT 120mm Single Convoluted Industrial Air Spring 1K176120

تفاصيل المنتج:

مكان المنشأ:	قوانغدونغ ، الصين
اسم العلامة التجارية:	GUOMAT
إصدار الشهادات:	ISO/TS16949, ISO9001
رقم الموديل:	1K176120

شروط الدفع والشحن:

الحد الأدنى لكمية:	5
الأسعار:	$59.9-69.9/PC
تفاصيل التغليف:	صندوق كرتون قوي أو كمتطلبات العملاء
وقت التسليم:	5-8 أيام العمل
شروط الدفع:	L/C,D/A,D/P,ويسترن يونيون
القدرة على العرض:	1000pcs/أسبوع

مفصلة وصف المنتج

بناء:	واحد معقول	اسم العنصر:	ربيع الهواء الصناعي
علامة تجارية:	قوات	ضمان:	1 سنة
يكتب:	مليء بالغاز	ارتفاع طبيعي:	120mm
ثقب الهواء:	G1/4	وزن الربيع:	2.1 كجم
إبراز:	120mm industrial air spring,single convoluted air spring,GUOMAT 1K176120 air spring , single convoluted air spring , GUOMAT 1K176120 air spring

1K176120 GUOMAT Single Convoluted Type 120mm Design Height Industrial Air Lift Bag

Product Specifications

Attribute	Value
Structure	Single Convoluted
Item Name	Industrial Air Spring
Trademark	GUOMAT
Warranty	1 Year
Type	Gas-Filled
Natural Height	120mm
Air Hole	G1/4
Spring Weight	2.1KG

Detailed Product Information

Parameter	Description
Brand	GUOMAT
Product Type	Industrial Air Spring
Model Number	1K176120
Primary Material	High-Strength Rubber
Operating Medium	Compressed Air (Dry, Lubricated)
Temperature Range	-30°C to +70°C
Pressure Range	2 - 7 bar
Mounting Type	Single Convoluted
Application	Industrial Machinery, Vibration Isolation, Suspension Systems, Precision Equipment Platforms

Technical Specifications

Nominal Diameter	0.7 MPa, Maximum OD	Stroke Range	Weight
Minimum Compression Height	Safe Extended Height
136mm	195mm	55mm	130mm

Maximum outer diameter: 195mm

Top cover diameter: 105mm

Top cover threaded holes: 2 M8 x 15mm

Top cover threaded holes center-to-center distance: 70mm

Top cover air holes: G1/4

Bottom cover diameter: 105mm

Bottom cover threaded holes: 2 M8 x 15mm

Bottom cover threaded holes center-to-center distance: 70mm

Design height: 120mm

Cross Reference Numbers

GOODYEAR: 1B7-544
GOODYEAR: 1B 7-544
GOODYEAR: 1B7 544
GOODYEAR: 1B 7 544
GOODYEAR: 1B7544
GOODYEAR: 1B 7544
Enidine Inc. YI-1B7-544

Additional Reference Numbers

2B8-550 579-92-3-530
2B7-548 579-92-3-526
2B7-542 579-92-3-525
2B7-541 579-92-3-525
2B7-540 579-92-3-525
2B6-535 579-92-3-515
2B6-530 579-92-3-510
1B8-564 579-91-3-532
1B5-510 579-91-3-501
2B14-479 578-92-3-356
2B14-476 578-92-3-356
2B14-470 578-92-3-356
2B14-462 578-92-3-356
2B14-383 578-92-3-356
2B14-365 578-92-3-356
2B14-363 578-92-3-356
2B14-362 578-92-3-356
2B14-473 578-92-3-353
2B14-367 578-92-3-353
2B14-366 578-92-3-353
2B14-360 578-92-3-353
2B14-359 578-92-3-353
2B14-356 578-92-3-353
2B14-355 578-92-3-353

Key Advantages

Competitive pricing: Our prices are competitive and offer excellent value for money.
Excellent vibration isolation: We actively dampen and absorb over 90% of disturbing impact energy and vibration. This protects your high-value equipment from damage, reduces ambient noise, creates a safer workplace, and significantly improves end-product quality by eliminating environmental disturbances.
Excellent durability and wide performance range: Built for real-world applications. Our springs are made of high-strength rubber materials to withstand extreme industrial environments.

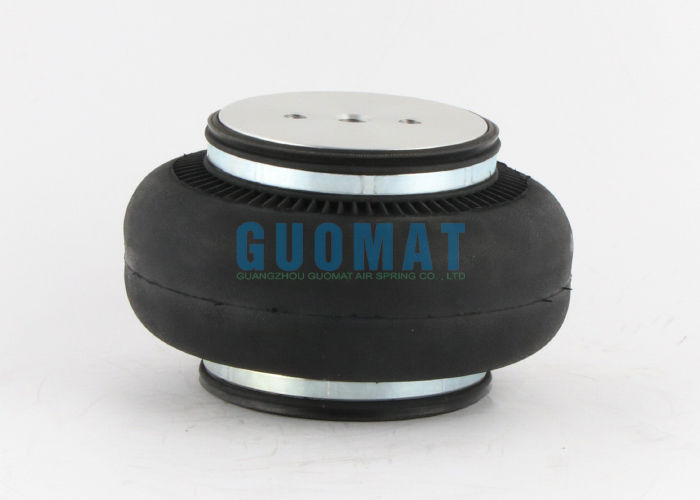

Product Images
