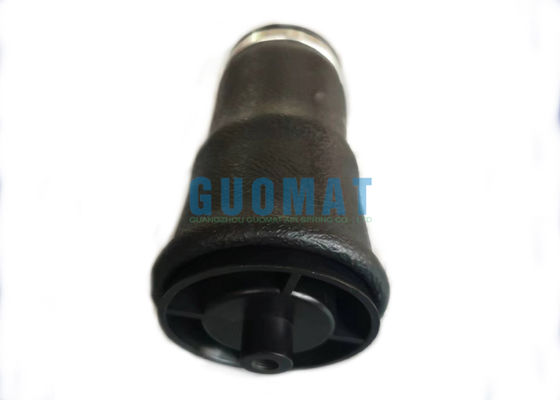

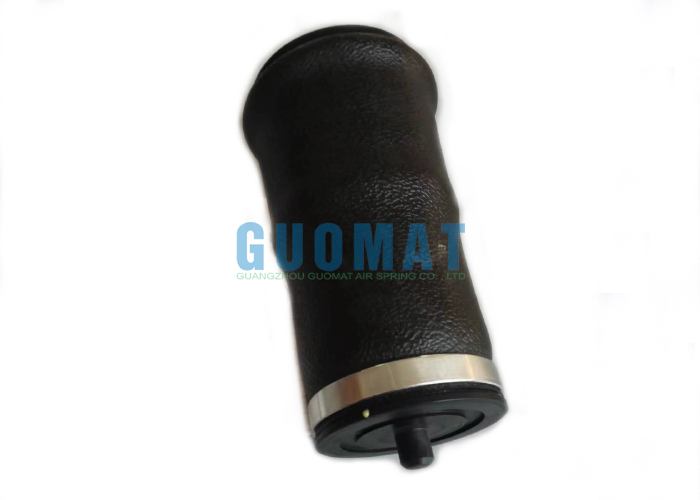

W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock

تفاصيل المنتج:

مكان المنشأ:	قوانغدونغ ، الصين
اسم العلامة التجارية:	GUOMAT
إصدار الشهادات:	ISO/TS16949:2009
رقم الموديل:	G7059

شروط الدفع والشحن:

الحد الأدنى لكمية:	6 أجهزة كمبيوتر
الأسعار:	$39.9/pc-$49.9/pc
تفاصيل التغليف:	صندوق كرتون قوي أو كما يحتاج العملاء
وقت التسليم:	2-8 أيام العمل
شروط الدفع:	T/T ، Western Union ، L/C ، PayPal ، Other Coptukite
القدرة على العرض:	10000pcs/الأسبوع

مفصلة وصف المنتج

اسم العنصر:	زنبرك هواء الكابينة	مادة:	البلاستيك
موضع:	مؤخرة	ضمان:	1 سنة
طَرد:	كرتون / البليت	عملية:	تسهيل التثبيت
ينطبق على:	شاحنة	نوع البند:	المقاعد والمقاعد والوصول
إبراز:	Firestone truck cab air spring,cab air shock absorber replacement,Firestone W02-358-7059 air shock , cab air shock absorber replacement , Firestone W02-358-7059 air shock

W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock

Product Specifications

Item	Cab Air Shock Absorber
Model Number	G7059
Size	Standard Size
Car Make	For Truck
Position	Rear

OEM Numbers

FIRESTONE W02-358-7059
FIRESTONE W02 358 7059
FIRESTONE W023587059
FIRESTONE Wo2-358-7059
FIRESTONE Wo2 358 7059
FIRESTONE Wo23587059
W02-358-7059 ABSZ70-7059 00125724 7059 32466301 32803501 W02N190759

Technical Data

Maximum Height: 11.7"
Minimum Height: 3.66"
Outer Diameter: 2.9"
Top Cover Diameter: 2.84"
Bottom Piston Diameter: 3.20"
Bottom Piston Height: 3.13"
Air Fitting: 1/8NPT

Installation Instructions

Step 1: Lift & Secure the Cab Use the truck's cab tilt mechanism to fully raise the cab.

THIS IS NON-NEGOTIABLE: Immediately place sturdy support stands or solid wood blocks under the cab's main frame. Never rely solely on the hydraulic lift cylinder. This is your primary safety backup.

Step 2: Replace the Air Spring Release air pressure: Locate and disconnect the air line from the old air spring. You may hear a hiss as pressure escapes.
Remove the old unit: Unbolt the top and bottom mounting bolts. Some wiggling or gentle prying might be needed to free it.
Install the new one: Position the new air spring. Hand-tighten the new mounting bolts to ensure they thread correctly.
Reconnect: Push the air line onto the new air spring's fitting until it clicks and locks securely.

Step 3: Test for Leaks & Final Check Carefully remove the support stands and slowly lower the cab.
Start the engine to inflate the air springs. The cab should rise to its normal height.
Leak Test: Mix soap and water and spray it on the air line connection and the air spring itself. Look for bubbles, which indicate a leak that must be fixed.
Go for a short test drive to ensure stability and listen for unusual noises.
