| مكان المنشأ: | قوانغدونغ ، الصين |
| اسم العلامة التجارية: | GUOMAT |
| إصدار الشهادات: | ISO/TS16949, ISO9001 |
| رقم الموديل: | GF40 / 60-1 |
| الحد الأدنى لكمية: | 5 |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | صندوق كرتون قوي أو كمتطلبات العملاء |
| وقت التسليم: | 5-8 أيام العمل |
| شروط الدفع: | L/C ، D/A ، D/P ، Western Union |
| القدرة على العرض: | 1000pcs/أسبوع |
| رقم البند: | GF40 / 60-1 | مادة: | المطاط والصلب |
|---|---|---|---|
| أسلوب: | زنبرك هوائي واحد ملتف | جزء: | زنبرك هوائي/رفع هوائي/تعليق هوائي |
| عينة: | متاح | طلب مخصص | رقم OEM: | كونتيتيك FS22-3 |
| يكتب: | مليء بالغاز | لون: | أسود |
| إبراز: | Contitech truck air spring,FD 120-17 dust removal equipment,industrial suspension air spring,FD 120-17 dust removal equipment,industrial suspension air spring |
||

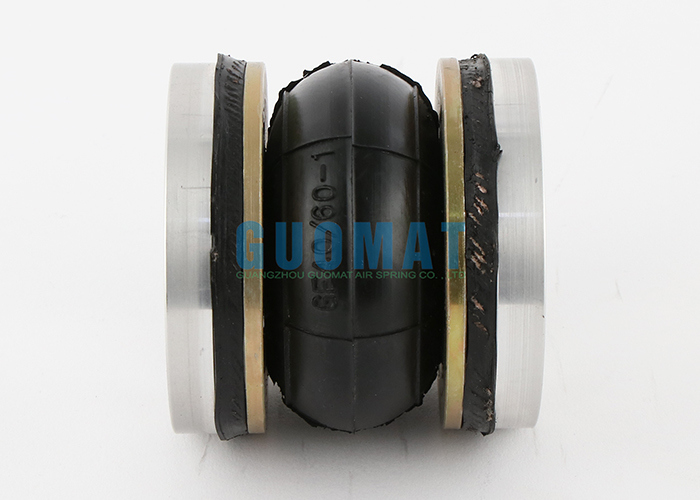

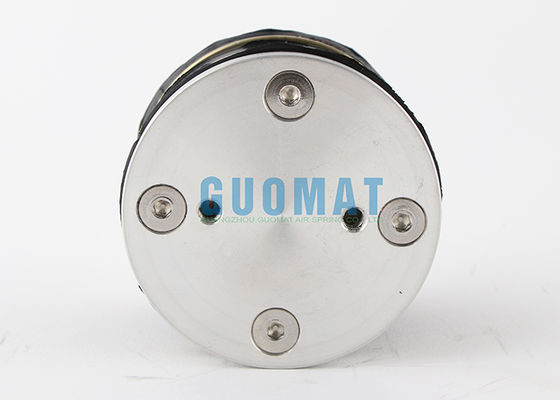

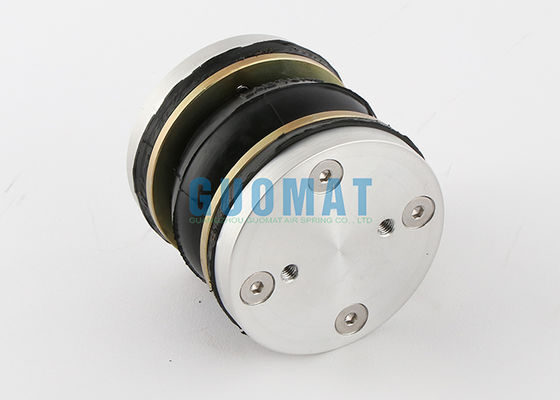

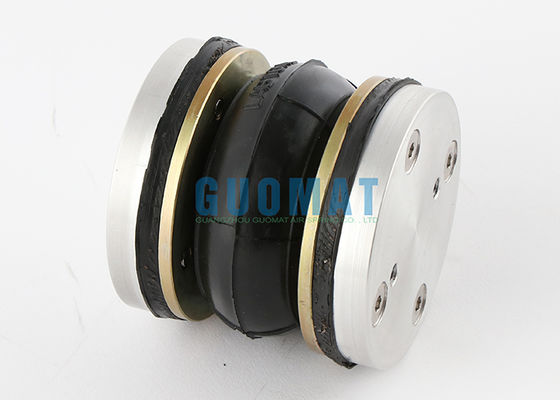

GF40/60-1 GUOMAT Single Convoluted Air Spring FS 22-3 DI CR Contitech Air Actuator
Product Specification
| Bottom Cover Plate | |
| Bottom Plate Center To Center Diameter | 60mm |
| Bottom Plate Diameter | 80mm |
| Bottom Plate Hole Quantity | 2 |
| Bottom Plate Type | Steel |
| Top Cover Plate | |
| Top Plate Center To Center Diameter | 60mm |
| Top Plate Diameter | 80mm |
| Top Plate Hole Quantity | 3 |
| Top Plate Type | Steel |
| Rubber Bellow | |
| Bellow Maximum Diameter | 80mm |
| Height | 60mm |
| Spring Type | Single Convoluted |
| Air Hole/Air Inlet/Gas Hole/Gas Fitting | |
| Air Inlet | G1/4 |
| Nut/Blind Nuts Type | M6 |
OE Manufacturer Number
Contitech FS22-3
Contitech FS 22-3
Contitech FS22-3 DI
Contitech FS 22-3 DI
Contitech FS22-3 DI CR
Contitech FS 22-3 DI CR
Summary of the Application Advantages of GF40/60-1 Air Springs
Superior Vibration Isolation: Low natural frequency effectively isolates low- and mid-frequency vibrations, a feature unmatched by steel springs.
Height Adjustability: The height and level of the equipment can be easily adjusted by inflating and deflating the air spring to adapt to different working conditions and loads.
Variable Stiffness Characteristics: Its stiffness changes with the load, allowing the system's natural frequency to remain relatively stable under varying loads, resulting in better vibration isolation.
High Load Capacity: A single air spring can withstand loads ranging from hundreds of kilograms to tens of tons.
Long Lifespan and Simple Maintenance: Compared to traditional metal springs and rubber vibration dampers, it has a longer lifespan and lower noise when used correctly.
