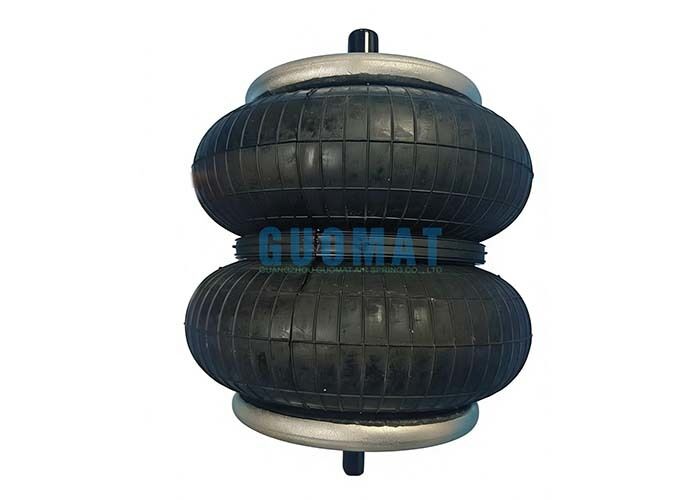

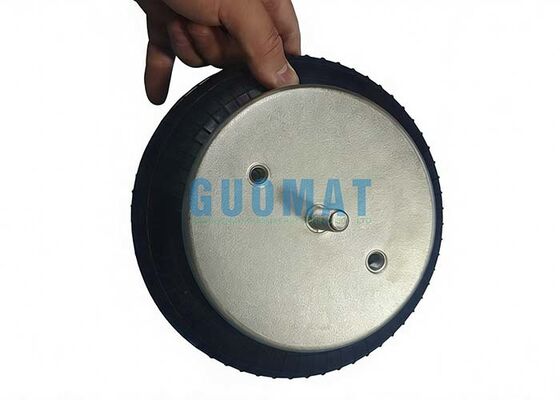

W01-358-7788 Firestone Double Convoluted Suspension Spring FD 200-19 510 Contitech Rubber Air Bag

تفاصيل المنتج:

مكان المنشأ:	قوانغدونغ، الصين
اسم العلامة التجارية:	GUOMAT
إصدار الشهادات:	ISO/TS16949:2009
رقم الموديل:	2B7788

شروط الدفع والشحن:

الحد الأدنى لكمية:	6 قطعة
الأسعار:	$59.9-69.9/pc
تفاصيل التغليف:	صندوق كرتوني قوي أو حسب حاجة العملاء
وقت التسليم:	2-8 أيام عمل
شروط الدفع:	تي / تي، ويسترن يونيون، خطاب الاعتماد
القدرة على العرض:	1000 قطعة/أسبوع

مفصلة وصف المنتج

اسم:	صدمة هوائية	مادة:	مطاط + معدن
ضمان:	12 شهرا	وظيفة:	تقليل الاهتزاز
Min. دقيقة. Pressure ضغط:	0 بار	فايرستون:	W01-358-7788
وزن:	3 كجم	حجم التعبئة:	24 * 24 * 24 (سم)
إبراز:	Firestone double convoluted air spring,Contitech rubber suspension spring,FD 200-19 industrial air bag , Contitech rubber suspension spring , FD 200-19 industrial air bag

W01-358-7788 Firestone Double Convoluted Suspension Spring FD 200-19 510 Contitech Rubber Air Bag

Product Specifications

Type: Double Convoluted Air Spring

Brand: GUOMAT

Model Number: 2B7788

Material: Rubber and Steel

Technical Parameters

Cover Plate Diameter: 160mm
Maximum Outer Diameter: 251.5mm
Working Stroke: 179mm
Air Inlet Type: Metric
Minimum Temperature: -40°F
Maximum Temperature: +70°F
Bellows Type: Double Convoluted
Threaded Hole Center Distance: 89mm

Replacement Part Numbers

Manufacturer	Part Numbers
Firestone	W01-358-7788; W013587788; W01 358 7788
Contitech	FD200-19 510; FD 200-19 510
Goodyear	2B9-245; 2B 9-245; 2B9 245
Goodyear	578923202; 578 92 3 202; 578-923-202
Triangle	6325
Triangle	4510
Watson & Chalin	AS-0088
Watson & Chalin	AS-0088G
