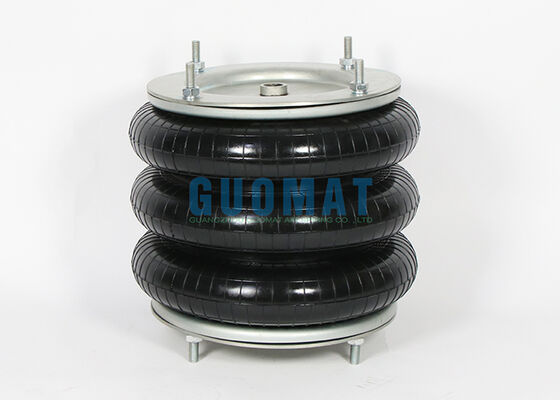

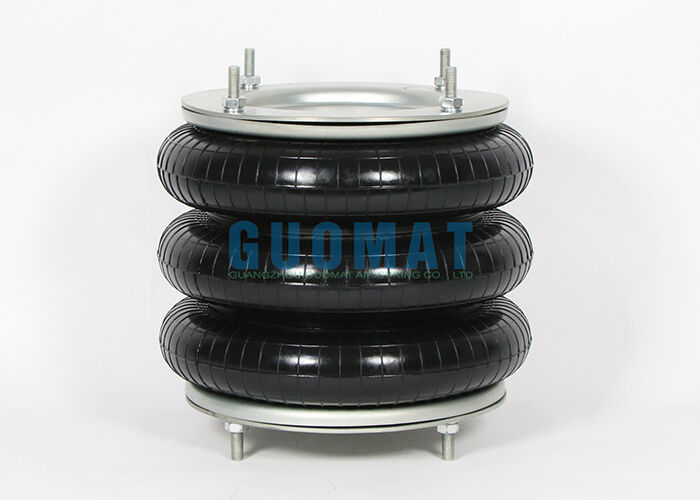

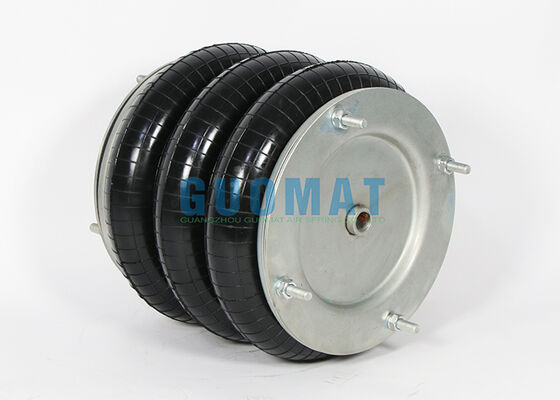

10''X3 Firestone Pneumatic Vibration Isolator W01R584059 Air Spring for Semiconductor Equipment

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	GUOMAT
إصدار الشهادات:	ISO/TS16949:2009
رقم الموديل:	3B10X3T

شروط الدفع والشحن:

الحد الأدنى لكمية:	6 قطعة
الأسعار:	US$129.9-159.9/PC
تفاصيل التغليف:	صندوق كرتوني قوي أو حسب حاجة العملاء
وقت التسليم:	3-7 أيام عمل
شروط الدفع:	خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون
القدرة على العرض:	1000 قطعة/أسبوع

مفصلة وصف المنتج

جزء:	الهواء سبرينغز منفاخ المحرك	استخدم المدى:	آلة صناعية
الخدمة المقدمة:	تصنيع المعدات الأصلية	طريقة الاتصال:	خاتم شفة
جودة:	تم اختباره بنسبة 100%	طَرد:	كرتون
فترة الضمان:	12 شهرا	نوع الخوار:	خوار واحد
إبراز:	Firestone pneumatic vibration isolator , 10x3 air spring for semiconductor , industrial air spring with warranty

10"×3 Firestone Pneumatic Vibration Isolator W01R584059 Air Spring

High-performance triple convoluted pneumatic air spring designed for precision vibration isolation and load support in semiconductor equipment and industrial automation applications.

Product Specifications

Type: Pneumatic Vibration Isolator Air Spring
GUOMAT Model: 3B10X3T
Bellows Type: Triple Convoluted Air Spring
Replacement For: Firestone W01-R58-4059 (W01R584059)
Application: Semiconductor Equipment, Precision Manufacturing, Industrial Automation

Product Overview

The GUOMAT 3B10X3T is a precision-engineered 10" × 3 triple convoluted pneumatic air spring developed for demanding industrial environments. Manufactured with reinforced natural rubber and precision-engineered steel components, this air spring delivers excellent vertical flexibility, stable load distribution, and reliable damping performance. It effectively isolates vibration generated by production equipment, reducing resonance and improving operational accuracy in semiconductor manufacturing machines, inspection equipment, cleanroom automation, and other applications where vibration control is critical to product quality.

Compatible Part Numbers

Firestone: 10"×3, 10X3, W01R584059, W01 R58 4059, W01-R58-4059

Contitech: FT210-32DS, FT210-32 DS, FT 210-32 DS

Norgren: M/31103, M 31103, M31103

Technical Specifications

Cover plate diameter: 210mm
Air vent: G1/2
Threaded hole: M8
Number of threaded holes: 4
Center distance between threaded holes: 181mm
Maximum outer diameter: 270mm
Minimum height: 100mm
Maximum height: 430mm

Pressure vs. Height Performance Data

Height H (mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol. V(cm³)
100	1410	1875	2370	2850	3300	3784	2279
150	1320	1740	2190	2620	3045	3482	4494
200	1140	1530	1920	2280	2670	-	6609
300	705	945	1200	1440	1710	1974	10256
400	240	300	390	480	600	707	12981

Performance Advantages

Lower vibration transmission
Better noise reduction
Adjustable air pressure for different loads
Improved machine stability
Reduced maintenance requirements
Longer equipment service life
Enhanced product quality in precision manufacturing

These advantages make it especially suitable for high-value production environments where equipment stability directly affects manufacturing accuracy.
