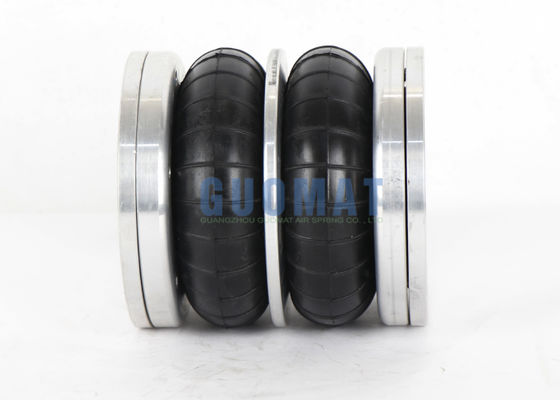

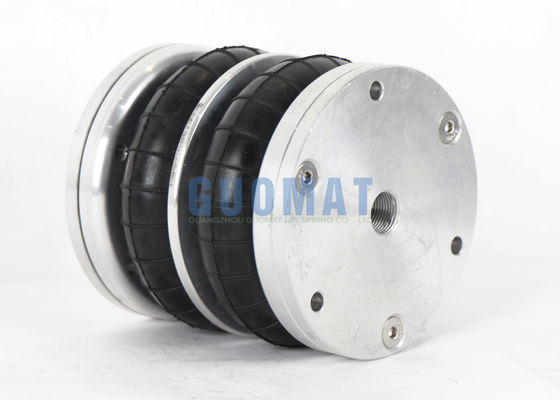

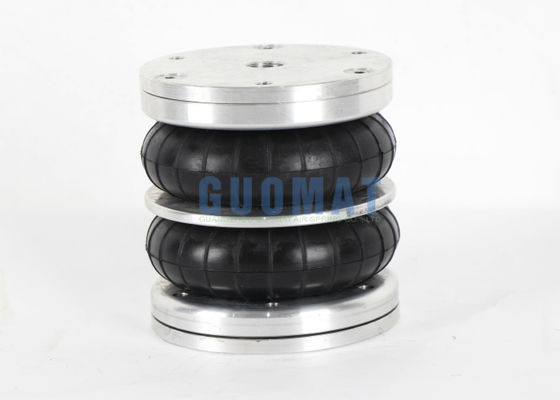

4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring

تفاصيل المنتج:

مكان المنشأ:	قوانغتشو ، الصين
اسم العلامة التجارية:	GUOMAT
إصدار الشهادات:	ISO/Ts16949:2009
رقم الموديل:	2B4.5X2P

شروط الدفع والشحن:

الحد الأدنى لكمية:	6pcs
الأسعار:	$89.9-99.9/pc
تفاصيل التغليف:	تغليف كرتون أو تغليف وفقًا لمتطلبات العملاء
وقت التسليم:	5-8 أيام العمل
شروط الدفع:	L/C ، T/T ، Western Union
القدرة على العرض:	10000 في الأسبوع

مفصلة وصف المنتج

اسم المنتج:	تعليق الهواء الربيع	مواد الربيع:	المطاط الطبيعي+غطاء الألومنيوم
الجودة:	100 ٪ اختبار	ضمان:	12 شهرا
لون:	أسود	Contitech:	FD 44-10 DI
الملاحقات:	2	فايرستون:	W01R584051
إبراز:	Firestone suspension air spring,double convoluted rubber bellows,4 1/2 inch balloon spring , double convoluted rubber bellows , 4 1/2 inch balloon spring

4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring

High-quality air spring designed for heavy duty truck suspension systems, manufactured with rubber and steel components.

Product Specifications

Item	Value
Part Number	2B4.5x2P
Type	Air Spring
Warranty	12 Months
Truck Model	Heavy Duty Truck
Color	Black
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Material	Rubber + Steel
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality
Position	Auto/Truck parts
Application	Auto Suspension Systems

FD 44-10 DI Contitech Air Spring Technical Data

Maximum Height	150mm
Minimum Height	65mm
Cover Diameter	110mm
Number of Threaded Holes (Top Cover)	3
Threaded Hole Size (Top Cover)	M6
Number of Threaded Holes (Bottom Cover)	3
Threaded Hole Size (Bottom Cover)	M6
Distance Between Threaded Holes	93mm
Maximum Outside Diameter	125mm

Vibration Isolation - Dynamic Characteristic Values

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Force(Load) (KN)	1.1	1.5	2	2.4	2.8	3.2	0.7
Spring Rate (N/mm)	44	56	68	80.5	92.5	104
Natural Frequency f0 (Hz)	3.2	3	3	2.9	2.9	2.8

Pneumatic Application - Static Characteristic Values

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Height H (mm) 140	0.8	1.14	1.48	1.82	2.18	2.54	0.74
Height H (mm) 120	1.36	1.86	2.37	2.89	3.4	3.93	0.66
Height H (mm) 100	1.82	2.45	3.09	3.73	4.38	5.03	0.54
Height H (mm) 80	2.29	3.06	3.84	4.62	5.41	6.21	0.4

Applications

Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles
On household products such as washing machines
Special shock absorbers for bicycles
On commercial lawn mowers
In the medical equipment industry (e.g., on wheelchairs)
